IoT Pro RS485 Module

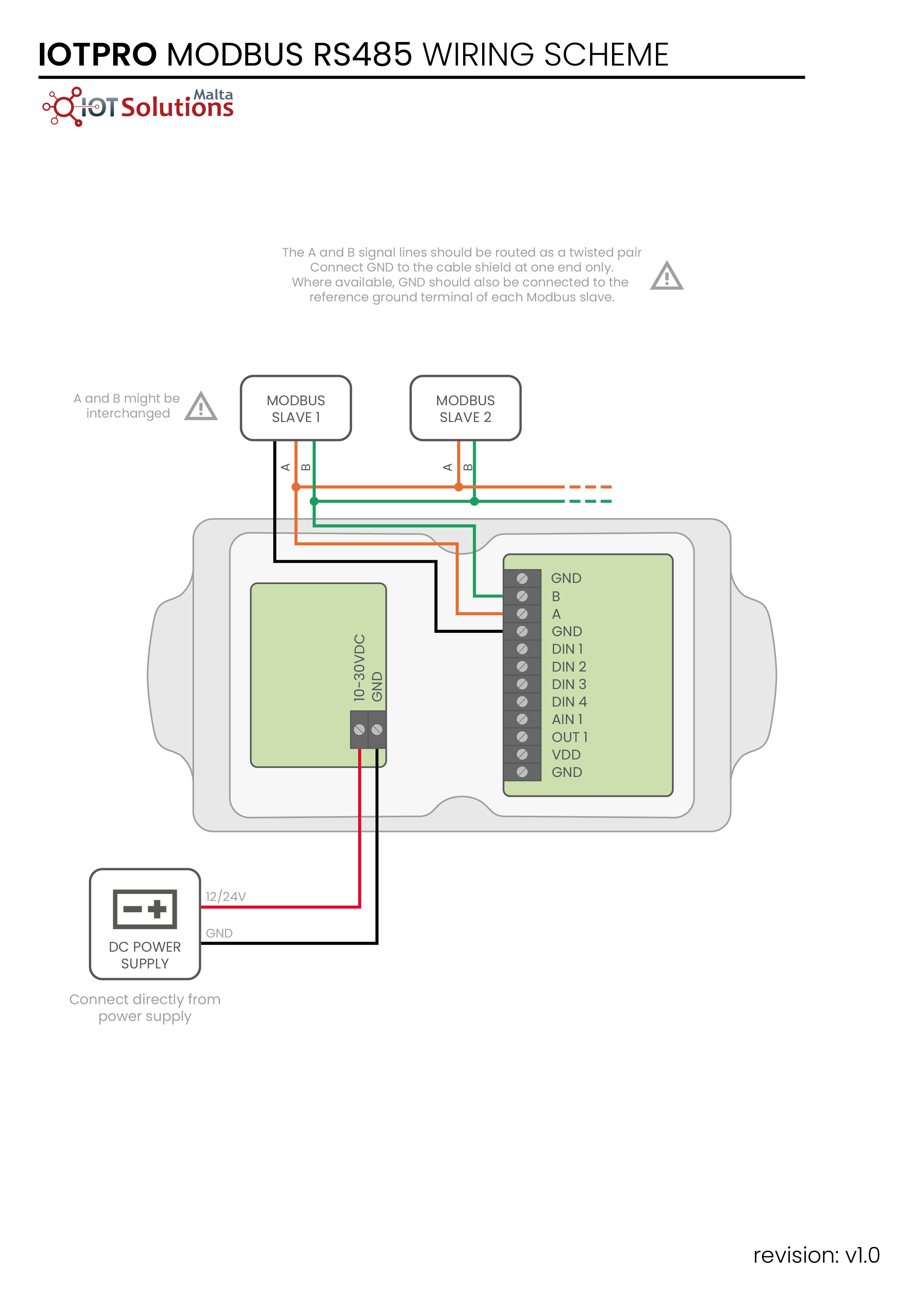

Wiring Diagram

Note: For older versions of the daughter board (IOTPRO_RS485_03), the B* connection represents the termination resistor. To connect the termination resistor, short B with B*. On newer versions of the daughter board, a 0 Ohm short is soldered on board by default, instead of needing an external short.
