Overview

The Live Map & Site Map are interactive features within the IoT Pro Platform that provide a geographic overview of all the assets you have permission to view.

It also displays key data from each asset, tailored to its application type, allowing you to quickly understand statuses and monitor performance at a glance.

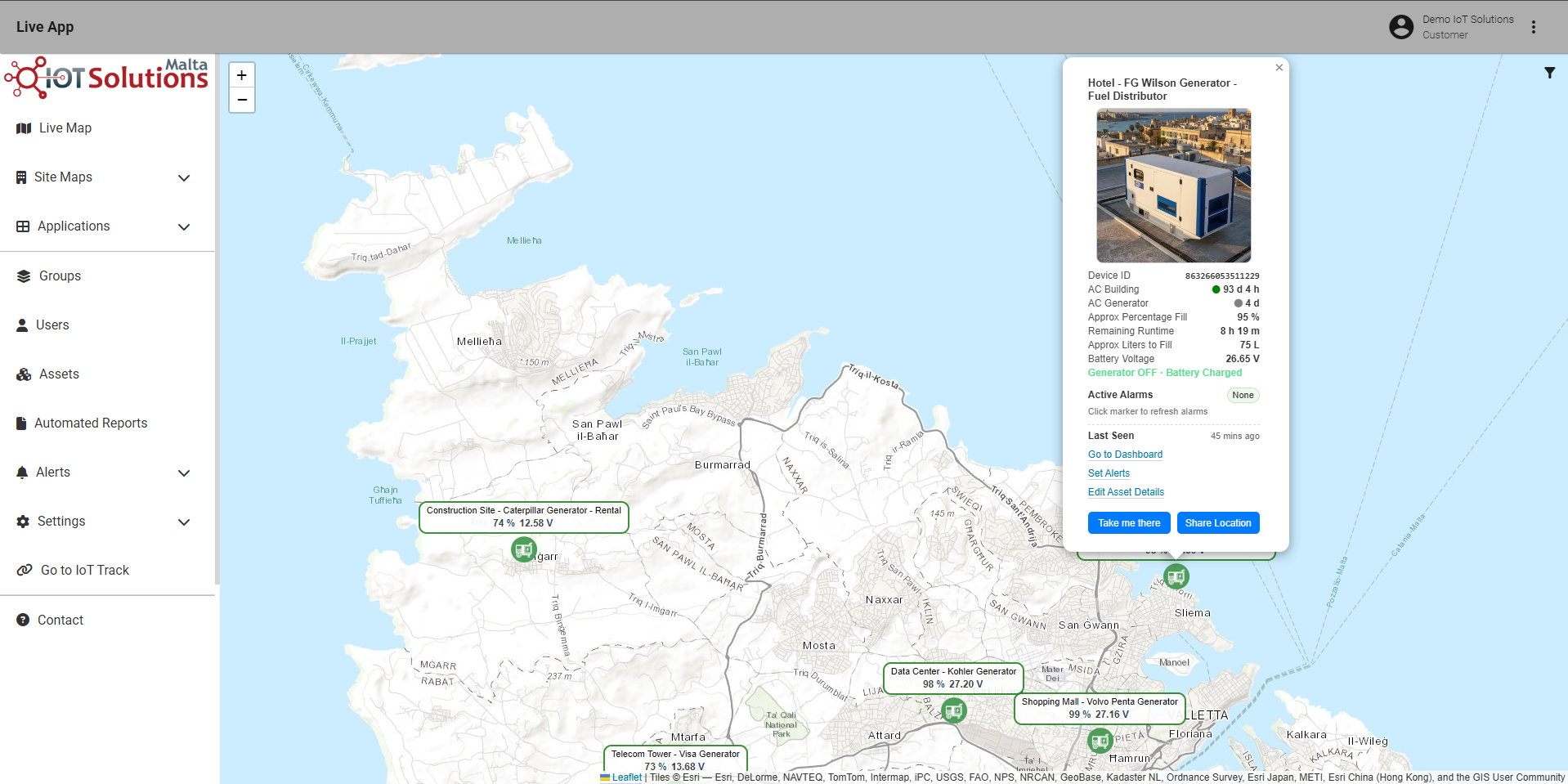

IoT Pro Platform - Live Map

You can quickly determine an asset’s status by the color of its icon on the map:

• Green icon — The asset is online, operating normally, and has no alerts.

• Red icon — The asset has an active alert.

  • To view alert details:

    1. Click the asset icon on the map.

    2. Open the Active Alarms section.

• Grey icon — The asset is Inactive, meaning no data is currently being received.

  • By default, an asset is marked inactive after 6 hours without communication.

  • To change this timeout, refer to the Alerts Guide, specifically the Offline Alert section.

General Information

Each Asset on the map with have a Marker Icon assigned to it depending on the Asset Profile.

Examples:

IoT Pro Platform - Icon Examples

Upon clicking on a marker, A tooltip will appear which will allow you to view the details of the asset which varies based on the type of asset it is.

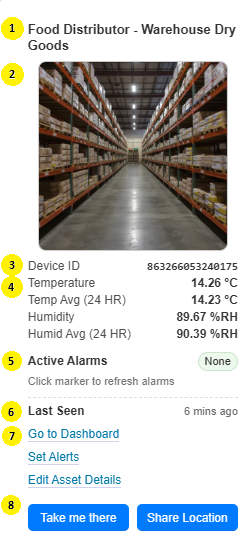

The tooltip that appears will look similarly to the example below:

The tooltip provides key information and quick actions for the selected asset, helping you monitor and manage it efficiently:

• (1) Asset name

• (2) Asset image

• (3) Device ID

• (4) Asset profile–specific details

• (5) Active Alarms

  • Displays any active alerts based on the alert settings configured for the asset.

• (6) Last Seen

  • Shows the most recent time the asset transmitted data.

• (7) Links

  • Go to Dashboard

    • Opens the asset’s dedicated dashboard.

  • Set Alerts

    • Takes you to the Alerts page to configure notifications.

  • Edit Asset Details

    • Opens the Assets page where you can modify asset settings.

• (8) Quick Action Buttons

  • Take Me There

    • Opens the asset’s location in Google Maps.

  • Share Location

    • Copies the device’s latitude and longitude so you can paste and share it where needed.



Filtering

The map allows you to filter and refine the assets displayed, making it easier to focus on what matters most.

This helps you quickly locate and monitor the information you need.

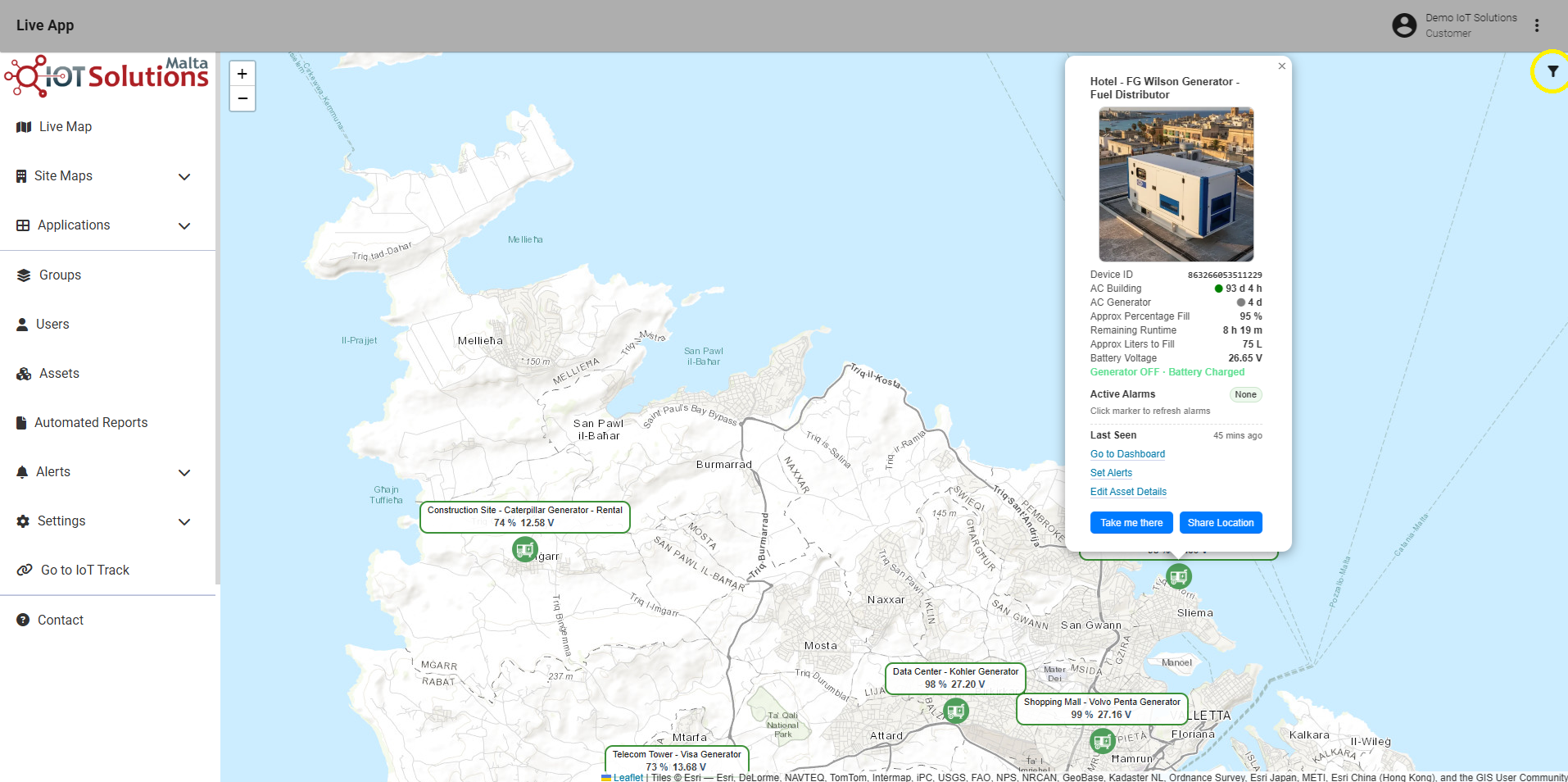

IoT Pro Platform - Live Map Filter Button Location

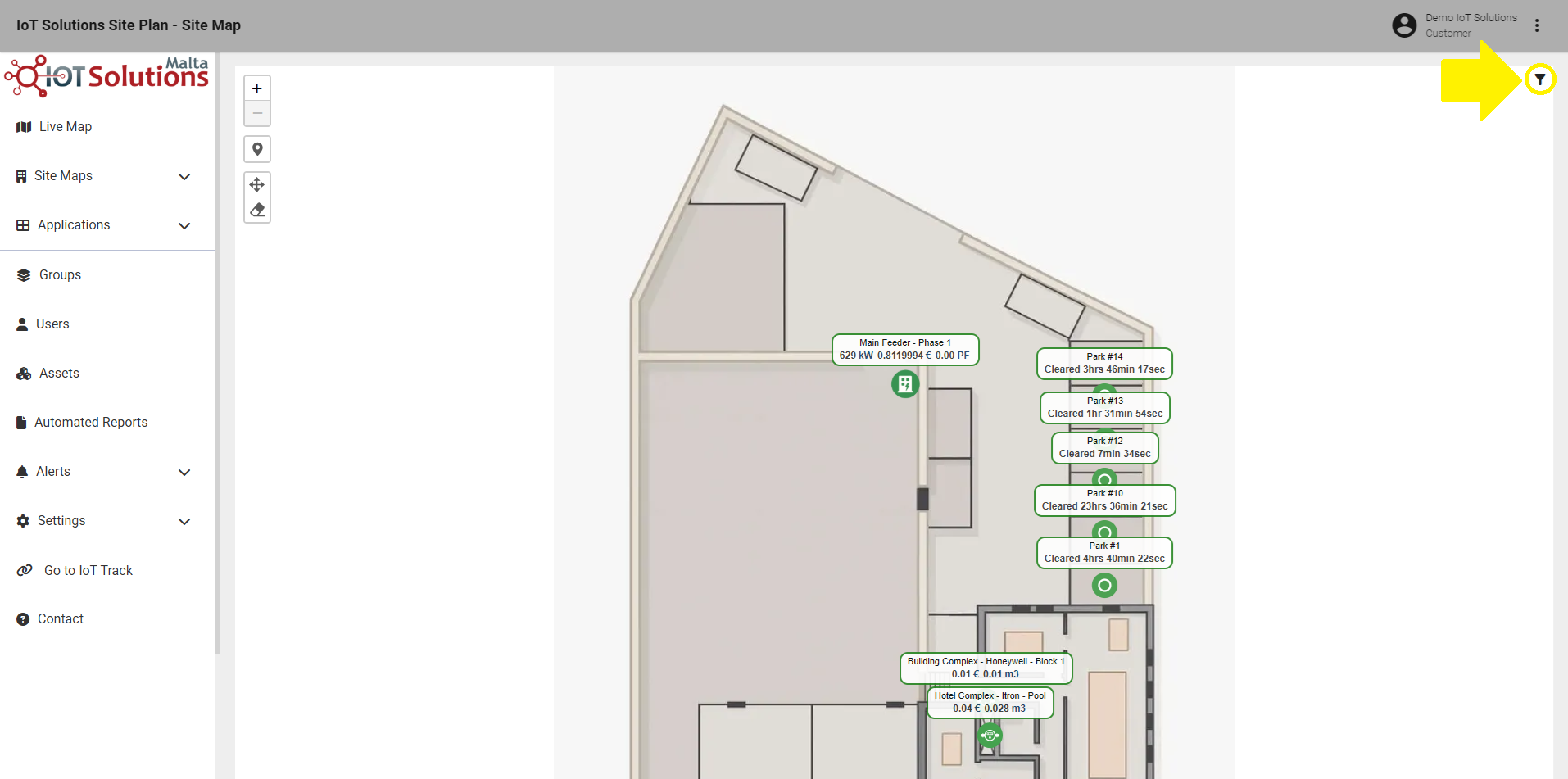

IoT Pro Platform - Site Map Filter Button Location

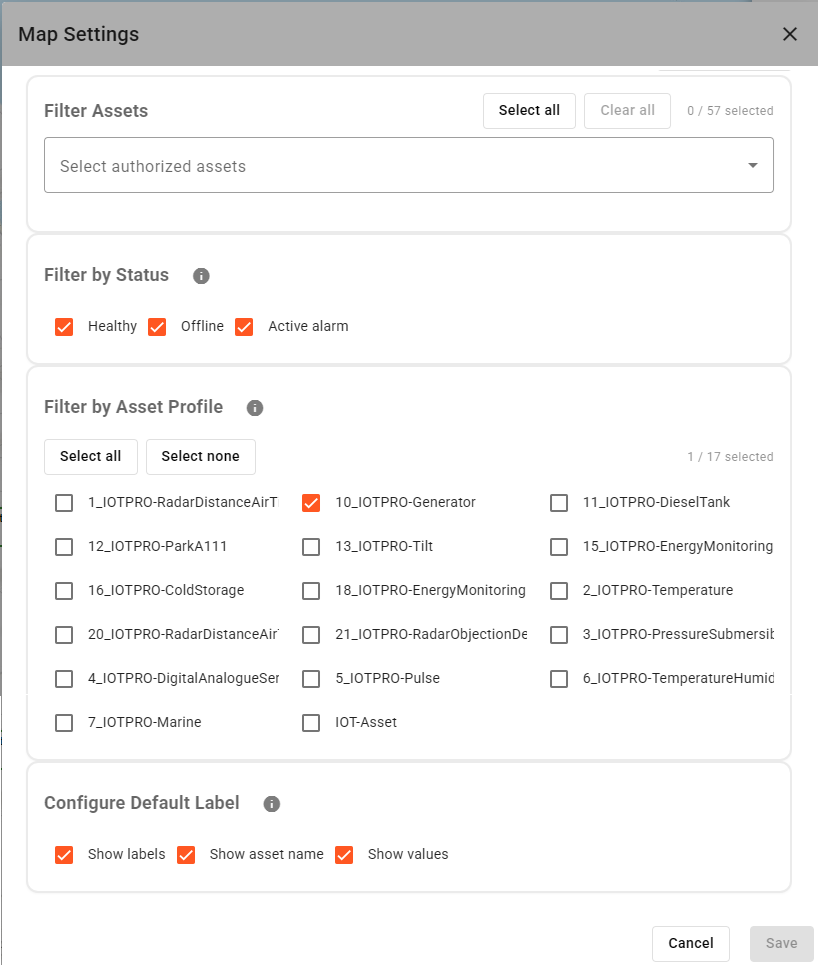

Using the Filter button in the top-right corner of the map, you can view assets by:

• specific assets

• asset status (state)

• asset profiles
