IoT Pro Opening and Closing

What you’ll need

  • T10 screw driver

Opening your device

Each bolt has a small flat washer that must be retained

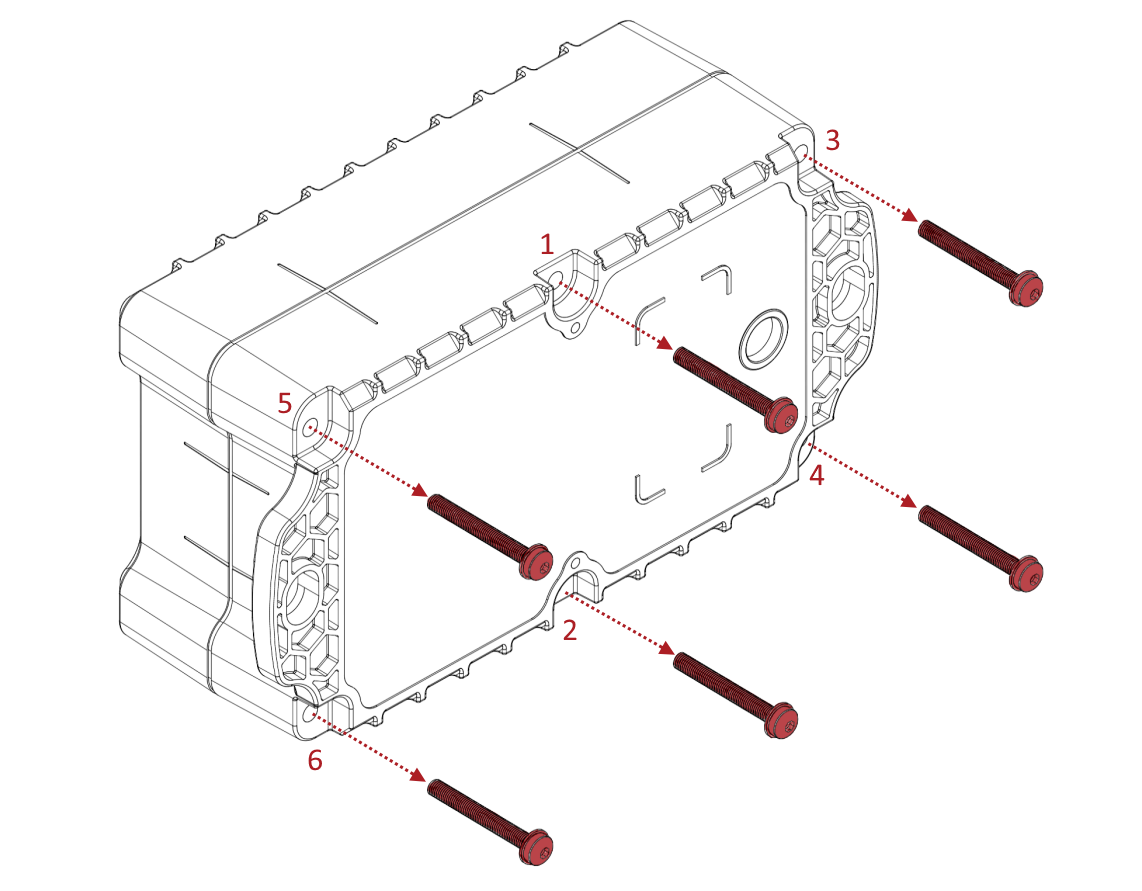

  1. Locate six T10 bolts on the bottom of the device

  2. Use a T10 screw driver to loosen the bolts in the following order, starting with 1 and finishing with 6


Closing your device

Tighten the bolts according to the specification

  1. Make sure that each bolt has a flat washer

  2. Use a T10 screw driver to tighten the bolts in the same order followed during loosening, starting with 1 and finishing with 6

  3. Torque the bolts to 0.25±0.05 Nm with a calibrated torque wrench
